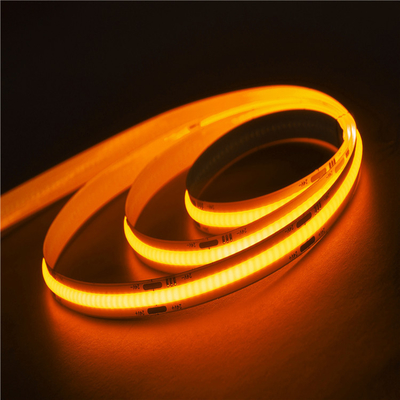

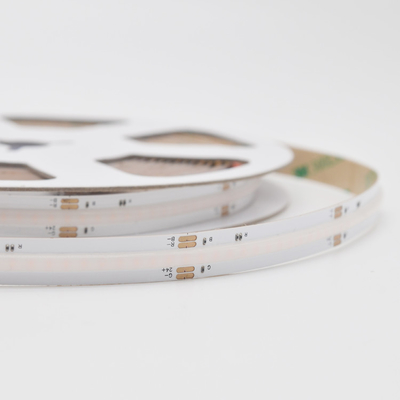

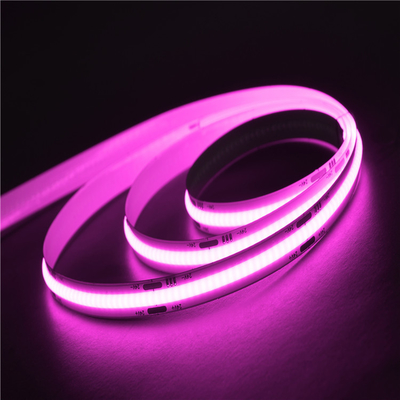

DC12/24V RGB 15W COB LED Strip Light High Density 840leds/m High Efficiency LED Flexible Stripe COB LED Strips
The difference between COB light strips and bead light strips
① Due to the structural characteristics of the COB light strip, the light-emitting surface is a linear colloid; while the ordinary lamp bead type light strip, its structure is a luminous lamp bead, which is attached to the PCB board. Therefore, the light emitted by the COB light strip is much more uniform, linear, and has no light spots;
② Since the COB chip is directly solidified on the PCB, the heat of the chip can be quickly transferred to the PCB. Therefore, the heat dissipation speed of the COB light strip is faster than that of the lamp bead type lamp, and the light decay of the COB light strip is smaller and the life is longer;
③ The light-emitting angle of the light-emitting surface of the COB light bar can reach 180°.
Application scenarios
① Home decoration (stair lighting, hall aisle lighting, lighting decoration, edge edging decoration);
② Path indication and exterior wall outline decoration, billboard backlighting, advertising signs, etc.;
③ The outlines of buildings, pavilions, bridges, parks and squares, building lighting decoration, various indoor and outdoor lighting projects;
④ Decorative lighting for festival decoration, event venue set, exhibition venue decoration, exhibition hall decoration, showcase, showcase, props, etc.;
⑤ Body decoration, interior decoration;
⑥ Hotels, bars, KTV, night clubs and other high-end entertainment venues decorative lighting.
Quick Details
| Place of Origin: |
Made in China |
Brand Name: |
TUNGWILLE |
| Model Number: |
TW-COB24V840-10MM |
LED QTY: |
840 led/meter |
| Input Voltage(V): |
DC12V/24 |
SMD Type: |
COB Led Strip |
| CRI (Ra>): |
90 |
Working Lifetime(Hour): |
50000 |
| Working Temperature(℃): |
-25°to +45 ° |
IP Rating: |
IP20,IP65,IP66,IP67,IP68 |
| Color Temperature(CCT): |
R:620K,G:520K,B:465K |
Warranty(Year): |
5-Year |
| Lamp Luminous Flux(lm): |
100 m/M |
Lamp Luminous Efficiency(lm/w): |
800 m/M |
| PCB Width: |
10mm |
Certification: |
UL,RoHS,CE |
| LED Type: |
COB RGB |
Minimum cutting length: |
25 mm |
Why choose Tungwille?
1. 10 years production experience
2. a,Qualification Ratio >99%, b, Delivery Satisfaction>98%, c,Service Satisfaction>99.9%.
3. In-Housing Mold Making , Free mold , Free prototype to meet customer's customized needs
4.500+different models can meet the different application
5. It is our mission to deliver state-of-the-art quality fittings and high-end components, all with 5 year minimum warranties, backed up by a dedicated team delivering a comprehensive after-sales service.
