Product Details:
|
| Product Name: | Suspended Aluminum Profile Led | Model: | TW5050 |
|---|---|---|---|

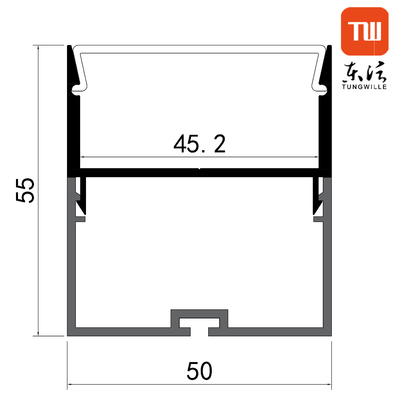

| Dimension: | W50 X H50 X Customized Length | Flexible LED Strip Size: | Up To 40mm |
| Color: | Silver/White/Black | Accessories: | Endcaps, Mounting Clips, Screws |
| Cover: | PMMA/PC, Within 15 Years Without Colour Changing | Transmittance Of PC Cover: | Milky 53%, , Frosted 72%, Transparent 89% |
| Highlight: | 40mm Aluminum Profile Channel,PMMA Cover LED Aluminum Profile |
||
High Quality Suspended Lightweight LED Strip Aluminum Extruded Aluminum Profile Channel LED Aluminum Profile
| Product name | High Quality Suspended Lightweight LED Strip Aluminum Extruded Aluminum Profile Channel LED Aluminum Profile |
| Material | 6063 Aluminum Alloy |
| Surface treatment | Anodized or Powder Coated |
| Length | 1M 2M or customized length |
| Color | Silver, White, Black, Can be custom-made |
| Size | L2000*W50*H50mm |
| Accessories | End caps, Clips |
| Diffuser material | PC |
Features:
TW5050 is a build-grade LED extruded profile designed to accommodate linear LED strips up to 45mm wide. It can be surface, suspended, or recessed mount. It features optional corner/corner connectors for seamless attachments. Made from high-quality aluminum, these extrusions provide superior thermal management for higher wattage LED strips and extend the overall life of your lighting system. TW5050 is manufactured with a patented matte diffuser to achieve maximum lumen output and wide beam distribution. TW5050 also helps protect leds from dust and other undesirable factors that can shorten the lifespan of leds.
Materials of Aluminium Profiles:
1. Heat Sink: 6063-T5 aerial aluminum
6063 Aerial aluminum has good corrosion resistance and toughness. It's easy polishing, color firm and anodic oxidation. It is a kind of typical extrusion material. Widly used in building profiles, heat sink of lights for vehicles, platforms, furniture, lifts, fences etc.
2. PC cover: Mitsubishi PC from Japan
PC (Polycarbonat) is an amorphous thermoplastic resin with excellent electrical insulation, extensibility,
dimensional stability, and chemical corrosion resistance. It has high strength, heat resistance and cold
resistance. It also has the advantages of self-extinguishing, flame retardant, non toxic and colorable.
Its strength and toughness are very good.
Advantages:
1. Thick wall thickness, High quality.
2. Pefect surface treatment, no scratch,no dirt, no deformation
3. 100% cleaned and checked one by one
Why Tungwille is your #1 choice:
Fast lead time
We hold a large inventory of our LED profiles in our warehouse and most orders are shipped in 3-10 business days.
FAQ:
Q1. What is the length in stock ?
A1: 2Meters/2.5Meters
Q2: Can we have different length ?
A2: Yes, we have in house cutting facilities to prepare the length in any quantity
Q3. What is the max length of the LED profile ?
A3. Max in 3meters for air shipment, 5meters for sea shipment
Q4. What is the material of diffuser ?
A4: PC or PMMA
Q5: Can you company help to assembly the led strip and driver ?
A5: Yes, we provide one-stop assembly service.
Q6: Can we have the profile in other color ?
A6: Yes, power coating and anodizing available
Q7: What is the delivery time ?
A7: 5-15 working days according to your order volume.
Q8: Is free sample available for quality approve ?
A8: Yes, free sample in short piece is available.
